SUA2200rmxli3u
Description
Fully working APC 2200 XL UPS - with 12 month RTB warranty.
New cells installed by us.

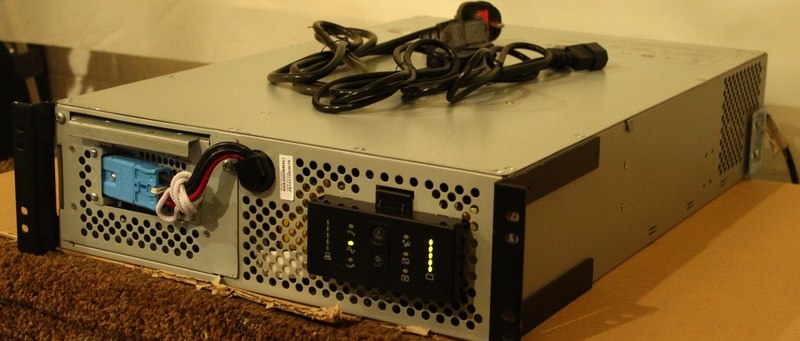

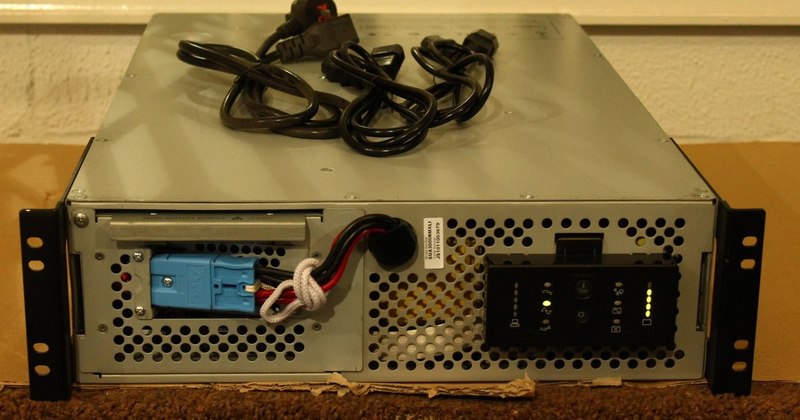

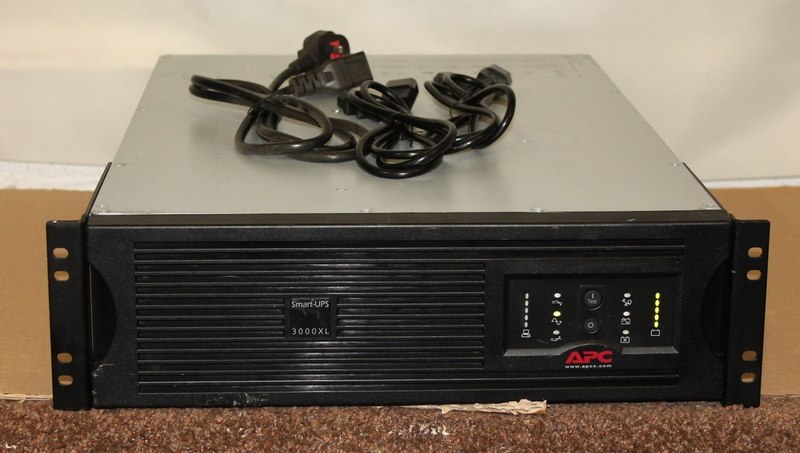

Includes front plastic, and rack-mountears on the side of the UPS.
Rails not included, but normally available, inquire for options.

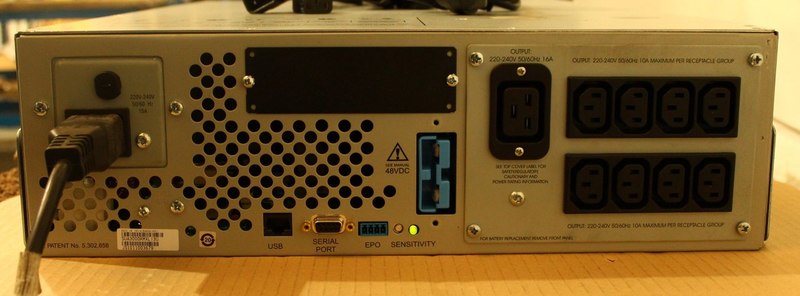

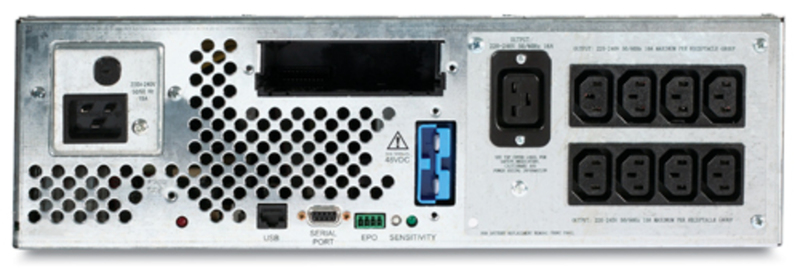

Excellent design - good thermal flow, easy to rebuild battery pack and uprated components throughout (because of the XL design) with Anderson plugs on the rear to add additional battery capacity (48VDC string)

These have proved to be one of the most reliable UPS APC have ever produced. They are of the generation without unnecessary complexity.

Compatible with AP9630

2x output leads included.
1x Input C19 lead included.

We ship with everything you need to start using on delivery. Simply plug into the wall power, then attach your devices.

As the unit is an XL type it has provision to add extra cells (48VDC rail) via the rear connector. This can be handy for home energy storage, or for example creating massive run times by attaching to a fork lift truck battery bank. They are a heavy duty design with ample space to provide good air flow.

The units are fully tested by UPS experts, and are fully working. They are second user and will have cosmetic signs of previous use. We professionally refurbish including paint touch up or case re-spray as needed. The grading is A-Grade which we class as as good as you can get without having new. We have been supplying UPS since 2002 and are the respected leader in the field, with the most used stock in Europe. What sets us apart is that our experience reduces the occurrence of problems, and our professionalism and the availability of resources means we have the power to quickly resolve issues when they do arise.

Under normal circumstances most orders before 3PM are dispatched on the day of order. Large units / quantities may roll over to being dispatched the next day. Email if you need to be sure of when we can send an order. We try to meet all customer deadlines.

All of our consignments are sent fully insured on a 24 hour service with our carriers. We cover all problems that occur in transit. We can ship to the EU (transit time varies) and have experience packing and shipping to overseas destinations. The EU shipping costs are estimated only, please contact us for confirmation before ordering. Large UPS may be palletised or shipped with the UPS in one box, and the cells in another. We have the packing materials to make sure that there are few problems in transit. Our warehouse is based in the UK. VAT is included in the buy it now price, and if you are VAT registered you will be able to reclaim this. VAT Invoices are sent automatically as a PDF file, via email, as part of our automated dispatch process.
Specifications
Max Configurable Power 1980W / 2200VA

Nominal Output Voltage 230V (Configurable for 220 : 230 or 240)
Output Voltage Distortion Less than 5% at full load
Output Frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal , 57 - 63 Hz for 60 Hz nominal

Line Interactive
Waveform Type - Sine wave

Output Connections 1x C19/20, 8x C13/14
Input 1x C19

Nominal Input Voltage (nominal) 220, 230 240 VAC
Input voltage range for main operations 160 - 286 V
Input voltage adjustable range for mains operation 151 - 302V
Input Frequency50/60 Hz +/- 3 Hz (auto sensing)

Batteries & Runtime Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 3 hour(s)
Replacement Battery APCRBC105

Interface Port(s)
DB-9 RS-232 , SmartSlot

Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO) available + optional

Surge energy rating 480 Joules
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection

Maximum Height 133.0 mm
Maximum Width 483.0 mm
Maximum Depth 660.0 mm
Rack Height 3 U
Net Weight 62.73 kg






















Image Links

In 2019 eBay banned and blocked HREF links in adverts.
This had an effect on our adverts - clicking on a thumbnail image to view a high resolution version no longer worked.

In response we decided to embed medium resolution images in all of our adverts.
We want to maintain the ability for customers to view and download high resolution images.
To view a high resolution image, copy one of the below URLs into your browser address bar.

https://secure.ups-trader.co.uk/public-pic/mlHaGh3t2_large.jpghttps://secure.ups-trader.co.uk/public-pic/GfRp1zlqS_large.jpghttps://secure.ups-trader.co.uk/public-pic/Levck0D9e_large.jpghttps://secure.ups-trader.co.uk/public-pic/M2TsUnVyY_large.jpghttps://secure.ups-trader.co.uk/public-pic/1sbPVMEkW_large.jpghttps://secure.ups-trader.co.uk/public-pic/L0lN70ZuY_large.jpghttps://secure.ups-trader.co.uk/public-pic/yqOK5iLdg_large.jpg

©
